Полное руководство по полочной вакуумной сушилке

Просмотры:5     Автор:Pедактор сайта     Время публикации: 2023-04-17      Происхождение:Работает

If you are in an industry where you need to dry heat-sensitive materials like pharmaceutical products, food, and chemicals, then you may be familiar with vacuum shelf dryers. This technology has revolutionized the drying process, making it faster and more efficient. In this comprehensive guide, we will discuss everything you need to know about

vacuum shelf dryers, including their definition, working principle, advantages, disadvantages, and maintenance tips.


1

Introduction

2 What is a vacuum shelf dryer?
3

How does a vacuum shelf dryer work?

4

Advantages of using a vacuum shelf dryer

5 Disadvantages of using a vacuum shelf dryer
6 Applications of vacuum shelf dryers
7

Maintenance tips for vacuum shelf dryer

8 Conclusion
9 FAQs


1. Introduction

Vacuum Shelf Dryers Consist of a square or round vacuum chamber with customized fixed internal shelves; the wet material to be dried is loaded into pans or trays and manually placed on the shelves. The top part of each shelf is flat with a coil jacket on the underside to circulate steam or liquid heating medium for the desired operating temperature.

Due to hundreds of various types of products and demands of inducing and controlling a vacuum environment, almost all aspects of a vacuum shelf dryer's mechanical design and ancillary support equipment can be customized to meet each individual process design needs.

The overall dimension of each vacuum chamber is driven by the required shelf surface area for drying. The shelf size, spacing between each shelf, and selected chamber geometry (square or round) will determine the overall chamber size.

Delicate, heat-sensitive materials are dried safely at extremely low drying temperatures. Operating under a vacuum, the product is protected from oxidation and atmospheric contamination, and released solvents are fully recovered.

Vacuum Shelf Dryers are specified for products requiring uniform, low-temperature drying with no agitation or compression. Among those products are pharmaceuticals, nutraceuticals, vitamin extracts, specialty food items, fine chemicals, and glandular products.

  Hywell machinery company is a professional Vacuum Shelf Dryer Manufacturer that has two types of disc vacuum dryers; one is a square tray type vacuum dryer and the other is a circular vacuum dryer. The round shape vacuum dryer cannot load too many trays, so it is more suitable for drying less material per batch.  Specific using circular shape vacuum dryers or square shape vacuum dryers, Hywell machinery's engineer will give recommendations according to material characteristics and single batch capacity.

If you need to dry liquids with high sugar content, such as honey, Chinese medicine extracts, etc., you can consider our company's high-efficiency vacuum dryer, the drying speed is 3-5 times faster than ordinary disc vacuum dryers.

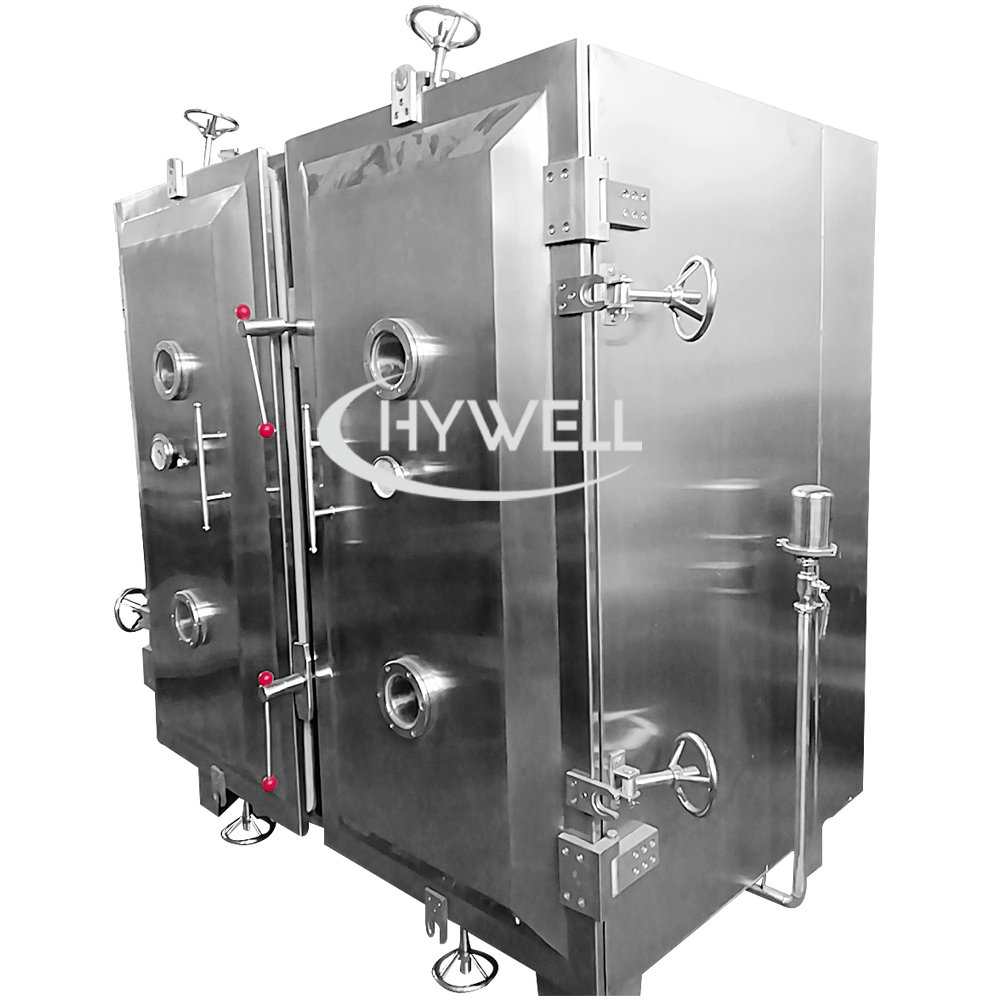

FZG-1

Vacuum Shelf Dryer

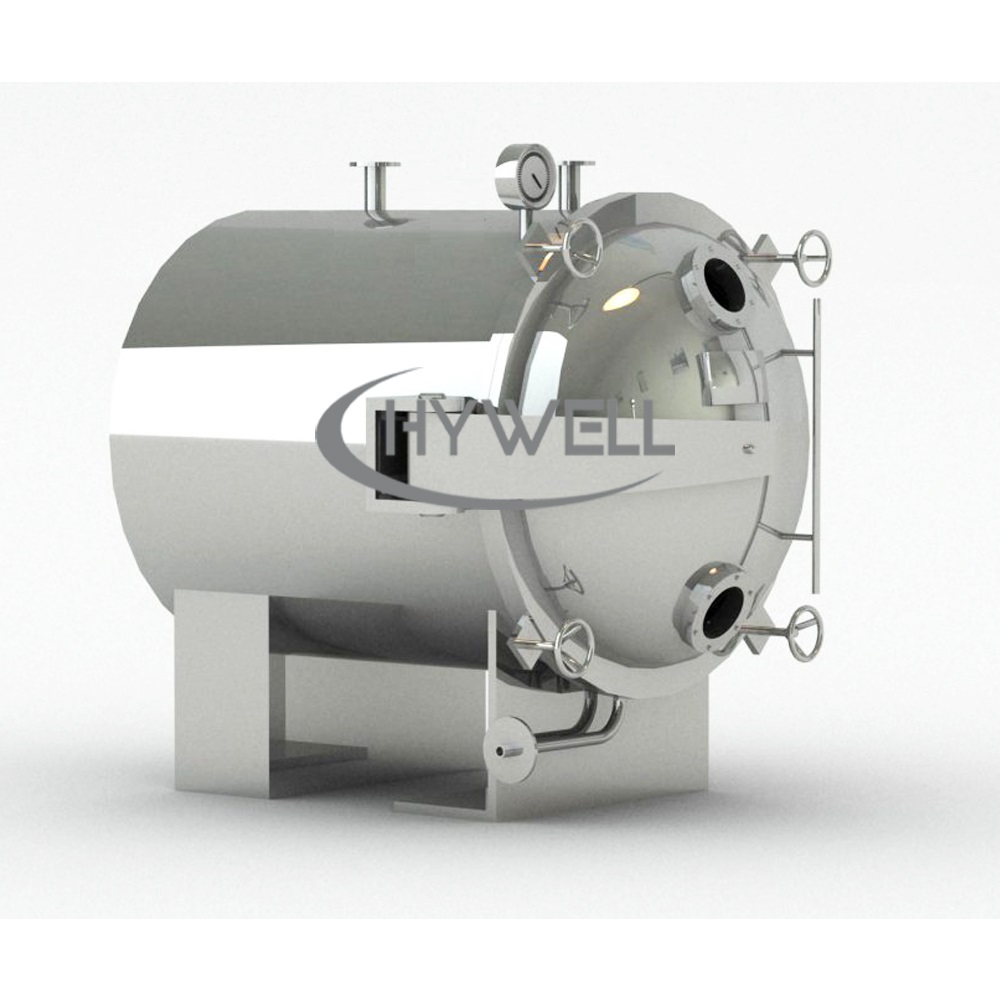

YZG

Vacuum Shelf Dryer

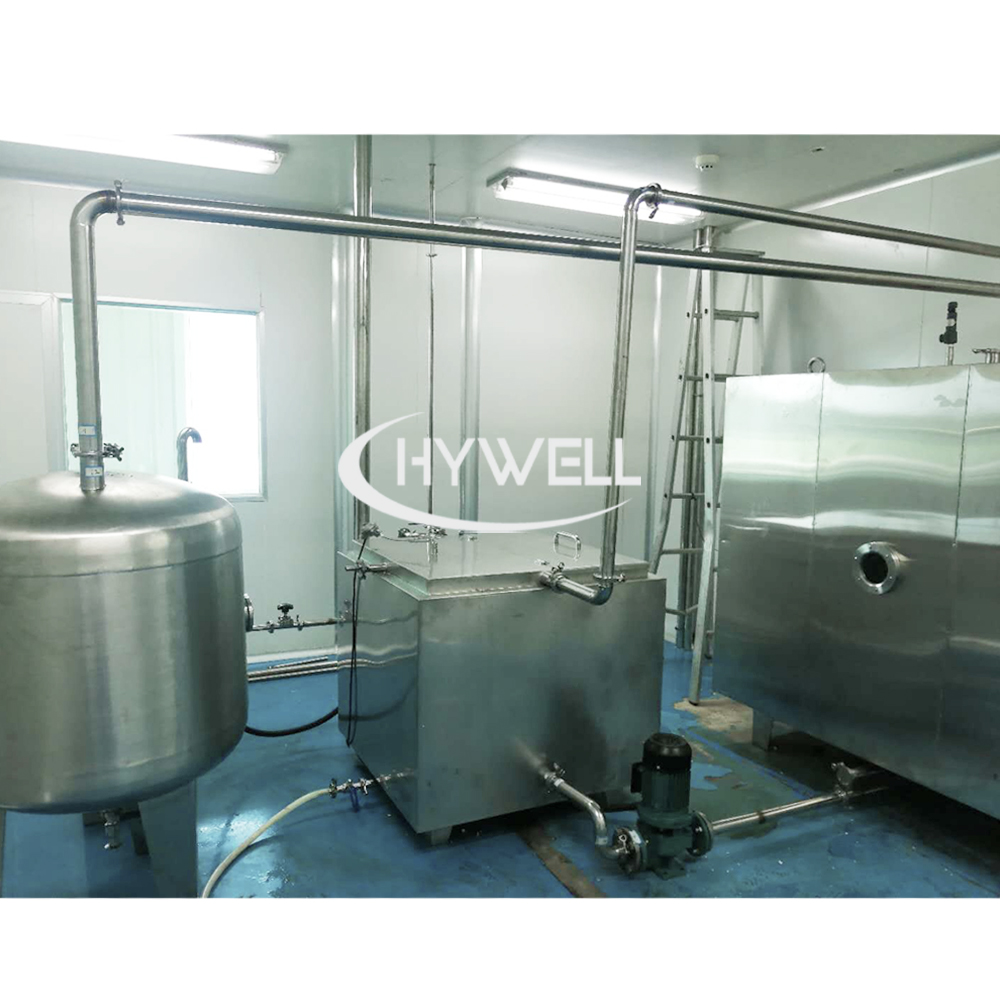

Vacuum Shelf Dryer

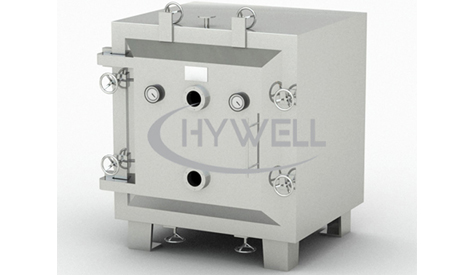

Vacuum Shelf Dryer


2. What is a vacuum shelf dryer?

A vacuum shelf dryer is a type of vacuum drying equipment that uses vacuum and low temperatures to dry heat-sensitive materials. This drying equipment consists of a vacuum chamber with several shelves, where the materials are placed for drying. The shelves are heated, and a vacuum is applied to remove the moisture from the materials.


Vacuum Shelf Dryer Video


3. How does a vacuum shelf dryer work?

The vacuum shelf dryer works by applying a vacuum and low temperatures to the materials to be dried. The materials are placed on the shelves inside the vacuum chamber. The shelves are heated, and a vacuum is applied to remove the moisture from the materials. The vacuum removes the moisture by lowering the boiling point of water, causing it to evaporate at lower temperatures.


4. Advantages of using a vacuum shelf dryer

•     Faster drying time

Vacuum shelf dryers use low temperatures and high vacuum, which speeds up the drying process.

    Improved product quality

Vacuum shelf dryers ensure that the materials are dried evenly and free from any impurities, resulting in better product quality.

•     Cost-effective

Vacuum shelf dryers are cost-effective because they consume less energy than other drying methods.

    Versatility

Vacuum shelf dryers can be used to dry a wide range of materials, including heat-sensitive products.


5. Disadvantages of using a vacuum shelf dryer

•     High initial cost

Vacuum shelf dryers can be expensive to purchase.

    Maintenance

Vacuum shelf dryers require regular maintenance to ensure that they operate efficiently.

•     Limited capacity

Vacuum shelf dryers have limited capacity, which can be a disadvantage for larger industries.


7. Applications of vacuum shelf dryers

Vacuum shelf dryers are used in various industries, including:

•     Pharmaceutical industry: Vacuum shelf dryers are used to dry pharmaceutical products like tablets, capsules, and powders.

•     Food industry: Vacuum shelf dryers are used to dry food products like fruits, vegetables, and meat.

•     Chemical industry: Vacuum shelf dryers are used to dry chemicals like pigments, dyes, and polymers.


8. Maintenance tips for vacuum shelf dryers

To ensure that your vacuum shelf dryer operates continuously and efficiently, it is important to perform regular maintenance. Here are some maintenance tips for vacuum shelf dryers:

•      Clean the vacuum chamber regularly to prevent any buildup of dust or other materials.

•      Inspect the shelves for any damage or warping. Replace any damaged shelves immediately.

•      Check the seals and gaskets for any wear or damage. Replace any damaged seals or gaskets immediately.

•      Lubricate any moving parts to prevent wear and tear.

•      Regularly check the vacuum pump for any signs of wear or damage.

By following these maintenance tips, you can ensure that your vacuum shelf dryer operates efficiently and lasts longer.


9. Conclusion

A vacuum shelf dryer is a technology used to dry heat-sensitive materials in various industries, including pharmaceuticals, food, and chemicals. This technology offers many advantages, including faster drying time, improved product quality, and cost-effectiveness. However, it also has some disadvantages, such as high initial costs and limited capacity. By understanding the working principle, advantages, disadvantages, and maintenance tips of vacuum shelf drying machines, you can make an informed decision about whether it is the right drying technology for your industry.


10. FAQs

1.    What materials can be dried using a vacuum shelf dryer?

•      Vacuum shelf dryers can be used to dry a wide range of materials, including pharmaceutical products, food products, and chemicals. whether the materials are liquid or powder or granules. they all can process to dry it.


2.    What are the advantages of using a vacuum shelf dryer?

•     The advantages of using a vacuum shelf dryer include faster drying time, improved product quality, cost-effectiveness, and versatility.

3.    What are the disadvantages of using a vacuum shelf dryer?

•      The disadvantages of using a vacuum shelf dryer include high initial cost, maintenance requirements, and limited capacity.

4.    How do I maintain my vacuum shelf dryer?

•      To maintain your vacuum shelf dryer, clean the vacuum chamber regularly, inspect the shelves, check the seals and gaskets, lubricate any moving parts, and regularly check the vacuum pump.
